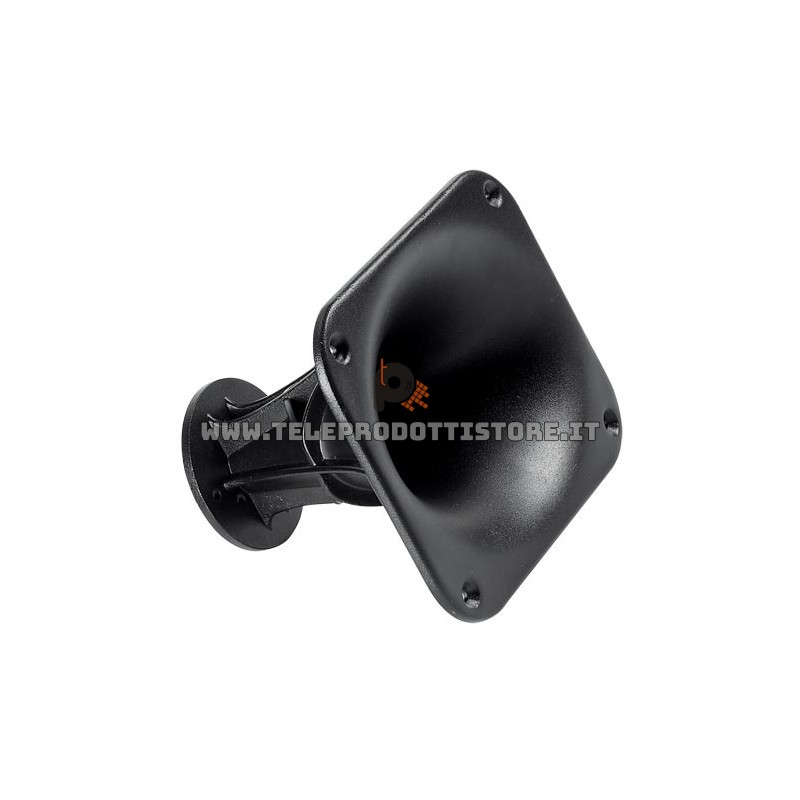

LTH102 Faital PRO Tromba per Driver tweeter in alluminio 1" Faitalpro
€80.00
Tax included
LTH102 Faital PRO Tromba per Driver tweeter in alluminio 1" Faitalpro
FaitalPro
LTH-102
ALLUMINIO
NOMINAL SPECIFICATIONS
NOMINAL SPECIFICATIONS
| Throat Diameter | 25.4 mm (1 in) |
| Frequency Range | 0.80 kHz |
| Recommended Crossover Freq.(1) | 1 kHz |
| Horizontal Nominal Coverage (-6dB)(2) | 60 |
| Vertical Nominal Coverage (-6dB)(2) | 50 |
| Directivity Index(2)(3) | 9.5 dB |
| Type | Elliptical Tractrix |
| Material | Al |
| Mouth Height | 189 mm (7.44 in) |
| Mouth Width | 235 mm (9.25 in) |
| Depth | 171.6 mm (6.76 in) |
| Mouth Mounting Holes (4x) | 6.5 mm (0.26 in) |
| Net Weight | 1.2 Kg (2.65 lb) |
| Shipping Weight | 1.45 Kg (3.20 in) |
| Shipping Box (Single Carton Box) |
207x268x185 mm (8.15x10.55x7.28 in) |
LTH102
Data sheet
- Diametro della gola
- 1 "
- Marca
- FaitalPro
- Serie
- Trombe e guide d'onda
Specific References
