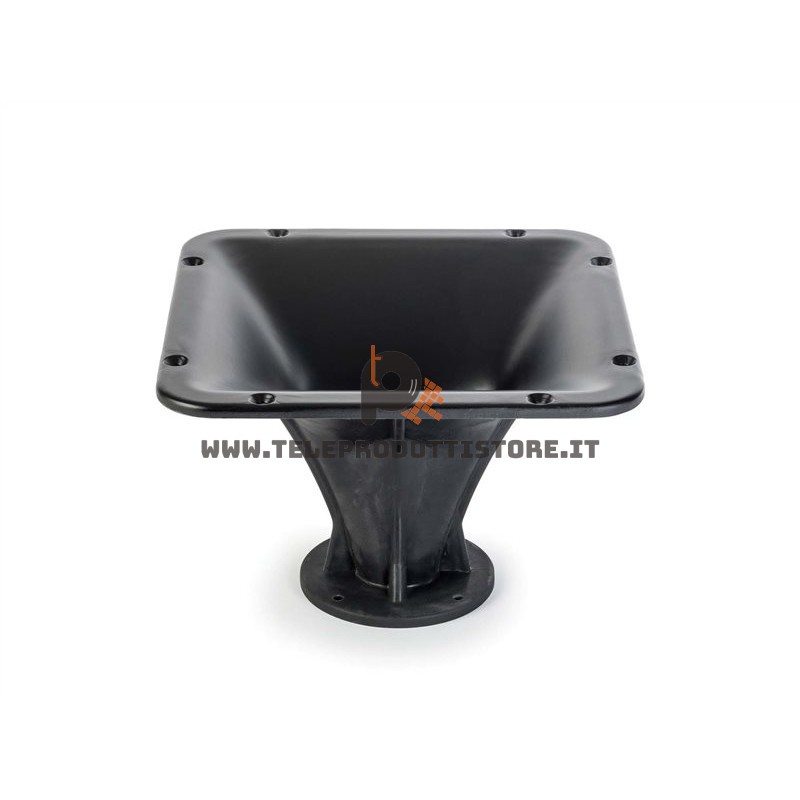

XR1496C 18 Eighteen SOUND Tromba 1,4" 35,5 mm. copertura costante 90x60 9dB
€80.00
Tax included
XR1496C 18 Eighteen SOUND Tromba 1,4" 35,5 mm. copertura costante 90x60 9dB
Description
The XR1496C has been designed in order to obtain a smooth frequency response maintaining constant coverage and directivity pattern, and avoiding the midrange narrowing effect as well as high frequency beaming problems.
With a throat entry of 1.4 inch, the XR1496C has been developed to reach the optimum performance when it will coupled with 1.4 inch exit Eighteen Sound high frequency compression drivers.
The XR1496C maintains nominal 90° Horizontal x 60° Vertical pattern control, providing consistent on-axis and off-axis frequency response from 1,2kHz to 16kHz in both horizontal and vertical planes.
Horn directivity is constant down to 1,2kHz.
General Specifications
| Throat Diameter | 35,5 mm (1,4 in) |
| Horizontal Coverage -6db | 90° (15 - -10) average range (1,25kHz - 12,5kHz) |
| Vertical Coverage -6db | 60° (18 - -12) average range (1,25kHz - 12,5kHz) |
| Directivity Index | 9dB (1.8 - -1,2) average range (1,25kHz - 12,5kHz) |
| Usable Frequency Range | Above 800 Hz |
| Recomm. Xover Frequency | 800 Hz or more |
| Sensitivity | 110 dB |
| Frequency Range | 800 Hz - 18KHz |
| Material | Composite material |
Mounting information
| Net weight | 1,4 Kg (3.09 lb) |
| Mouth Height | 270 mm (10,6 in) |
| Mouth Width | 270 mm (10,6 in) |
| Depth | 180 mm (7,1 in) |
| Mouth mounting dimension | 8 Ø 6 holes |
Models
| Model | Code | Info |
|---|---|---|
| XR1496C | 0421496C00 |
XR1496C
Data sheet
- Diametro della gola
- 1,4"
- Marca
- Eighteen Sound
- Serie
- Trombe e guide d'onda
