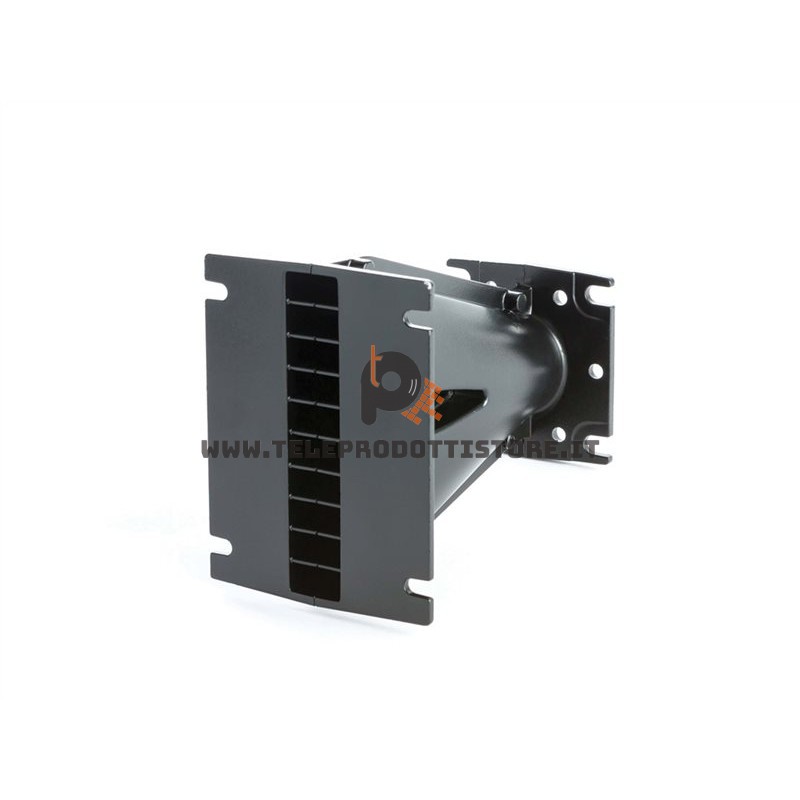

XG10 18 Eighteen SOUND Guida d'onda in Alluminio 110°Hx10°V 1" 25,4 mm.
€71.00
Tax included
XG10 18 Eighteen SOUND Guida d'onda in Alluminio 110°Hx10°V 1" 25,4 mm.
Description
The XG10 is a 1.0 inch throat entry line-array waveguide. The specific transmission line acoustical design minimizes internal reflections and acoustical losses, while throat shape has been optimized for lowering air distortion. The XG10 has been optimised for obtaining a 10° vertical dispertion angle, while the horizontal coverage angle could vary from 80° to 120° depending on the specific cabinet design. The waveguide has been developed to obtain optimum performances when it will coupled with 1.0 inch exit Eighteen Sound high frequency compression drivers.
General Specifications
| Throat Diameter | 25,4 mm (1,0 in) |
| Horizontal Coverage -6db | 100° nominal |
| Vertical Coverage -6db | 10° nominal |
| Directivity Index | |
| Usable Frequency Range | Above 1200 Hz |
| Recomm. Xover Frequency | |
| Sensitivity | 111 dB |
| Frequency Range | 1000 Hz - 18KHz |
| Material | Die-cast aluminum |
Mounting information
| Net weight | 0,4 kg (0,88 lb) |
| Mouth Width | 87 mm (3.42 in) |
| Depth | 130 mm (5.11 in) |
| Flange Height | 101 mm (3.97 in) |
| Flange Mounting | 4 screws Ø M5 |
| Gross Weight | 0,5 Kg (1,1 lb) |
Models
| Model | Code | Info |
|---|---|---|
| 042XG10H00 | 042XG10H00 |
XG10
Data sheet
- Diametro della gola
- 1 "
- Marca
- Eighteen Sound
- Serie
- Trombe e guide d'onda
