XR2064C 18 Eighteen SOUND Tromba 2" 50 mm. copertura costante 60x40 11dB
€82.00
Tax included
XR2064C 18 Eighteen SOUND Tromba 2" 50 mm. copertura costante 60x40 11dB
Description

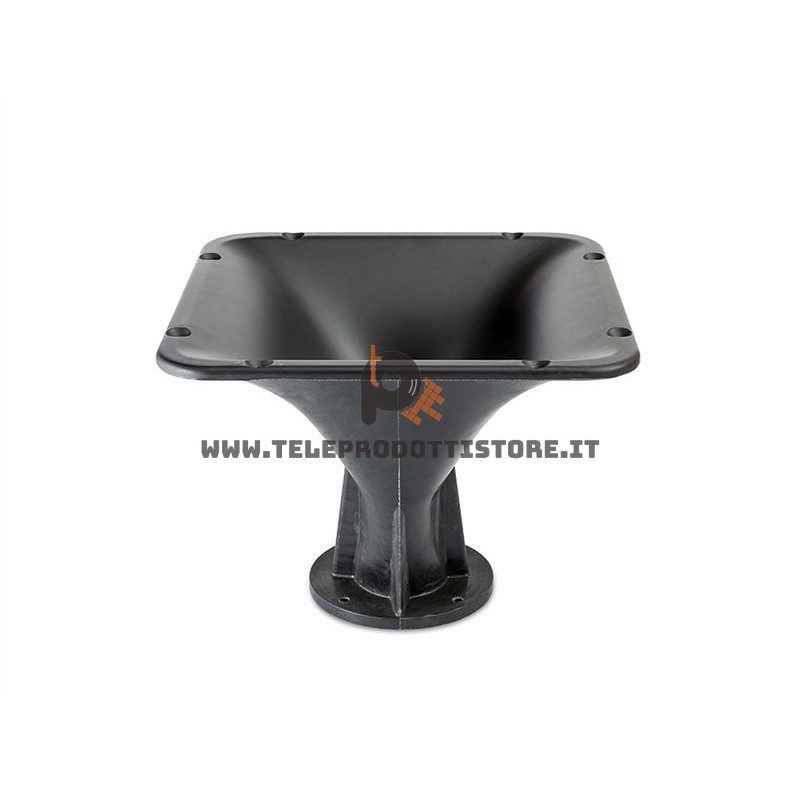

The XR2064C is a constant directivity 2 inch horn. The XR2064C has been developed to reach the optimum performance when coupled to 2 inch exit Eighteen Sound high frequency compression drivers.
All XR series horns have been designed in order to reach smooth driver frequency response, to maintain constant coverage and directivity and eliminating the midrange narrowing and high frequency beaming problems common of many similar horns on the market.
The XR2064C horn maintains nominal 60° Horizontal x 40° Vertical pattern control. It provides consistent on-axis and off-axis frequency response from 1.2kHz to 16kHz in both horizontal and vertical planes. Horn directivity is constant down to 1.2kHz.
General Specifications
| Throat Diameter | 50 mm (2 in) |
| Horizontal Coverage -6db | 60° (10 - -6) average range (1,6kHz - 12,5kHz) |
| Vertical Coverage -6db | 40° (30 - 0) average range (1,6kHz - 12,5kHz) |
| Directivity Index | 11 dB (1.8 - - 2.6) average range (1,6kHz - 12,5kHz) |
| Usable Frequency Range | Above 800 Hz |
| Recomm. Xover Frequency | 800 Hz or more |
| Sensitivity | 110 dB |
| Frequency Range | 800 Hz - 18KHz |
| Material | Composite material |
Mounting information
| Net weight | 1,6 Kg (3,52 lb) |
| Shipping weight | 2,16 Kg (4,76 lb) |
| Mouth Height | 270 mm (10,6 in) |
| Mouth Width | 270 mm (10,6 in) |
| Depth | 200 mm (7,9 in) |
| Mouth mounting dimension | 8 Ø 6 holes |
Models
| Model | Code | Info |
|---|---|---|
| XR2064C | 0422064C00 |
XR2064C
Data sheet
- Diametro della gola
- 2"
- Marca
- Eighteen Sound
- Serie
- Trombe e guide d'onda
