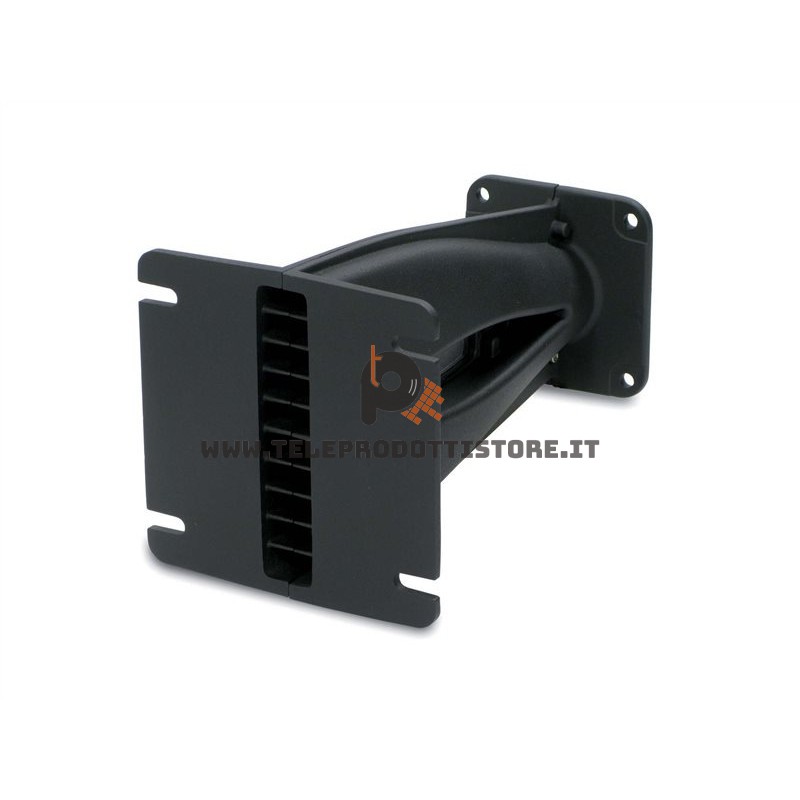

XG14 18 Eighteen SOUND Guida d'onda in alluminio 110°Hx10°V 1,4" 35,5 mm.
€74.00
Tax included
XG14 18 Eighteen SOUND Guida d'onda in alluminio 110°Hx10°V 1,4" 35,5 mm.
Description
The XG14 is a 1.4 inch throat entry line-array waveguide. The specific transmission line acoustical design minimizes internal reflections and acoustical losses, while throat shape has been optimized for lowering air distortion. The XG14 has been optimised for obtaining a 10° vertical dispertion angle, while the horizontal coverage angle could vary from80° to 120° depending on the specific cabinet design. The waveguide has been developed to obtain optimum performances when it willcoupled with 1.4 inch exit Eighteen Sound high frequency compression drivers.
General Specifications
| Throat Diameter | 35,5 mm (1,4 in) |
| Horizontal Coverage -6db | 100° nominal |
| Vertical Coverage -6db | 10° nominal |
| Directivity Index | |
| Usable Frequency Range | Above 800 Hz |
| Recomm. Xover Frequency | |
| Sensitivity | 111 dB |
| Frequency Range | 500 Hz - 18KHz |
| Material | Diecast aluminum |
Mounting information
| Net weight | 1 kg (2.10 lb) |
| Mouth Width | 133 mm (5.25 in) |
| Depth | 215 mm (8.45 in) |
| Flange Height | 126 mm (5 in) |
| Flange Mounting | 4 screws Ø 6 |
| Gross Weight | 1,3 Kg (2.73 lb) |
Models
| Model | Code | Info |
|---|---|---|
| 042XG14H00 | 042XG14H00 | |
| XG14 | XG14 |
XG14
Data sheet
- Diametro della gola
- 1,4"
- Marca
- Eighteen Sound
- Serie
- Trombe e guide d'onda
