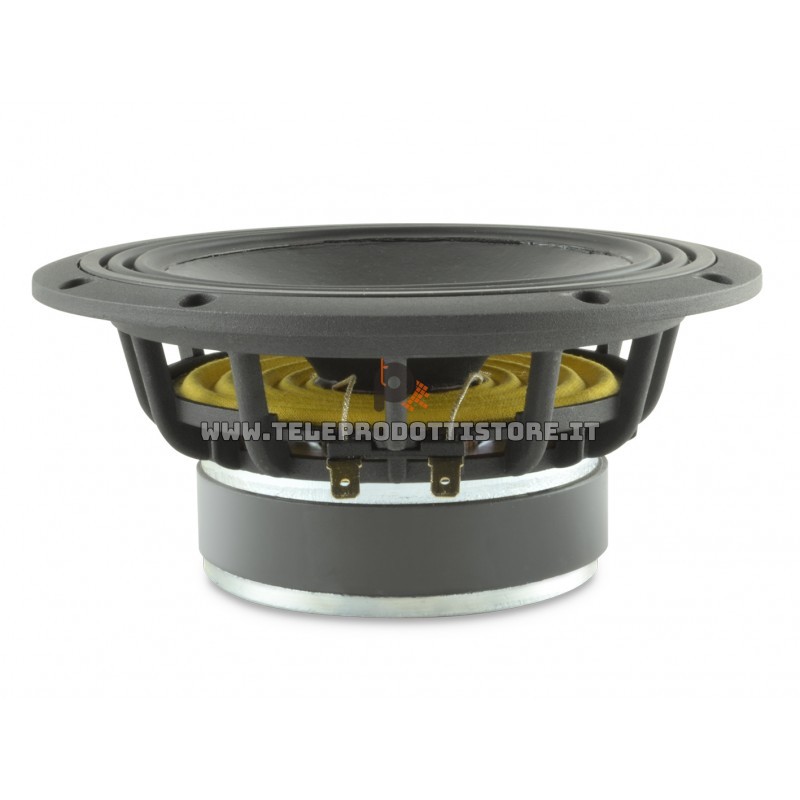

Sica 6,5 H 1,5 CP Woofer altoparlante 6,5'' 175mm 8 ohm 240W Z004100
97,00 €
Tasse incluse
Sica 6,5 H 1,5 CP Woofer altoparlante 6,5'' 175mm 8 ohm 240W Z004100
Sica 6,5 H 1,5 CP Z004100
Woofer con diametro nominale di 6,5'' e diametro flangia di 175 mm.
Largamente utilizzato per utilizzo studio monitor Alta Fedeltà e Home Audio.
Il Sica 6,5 H 1,5 CP monta un magnete in ferrite e cestello in pressofusione, ha una sospensione in gomma ed una impedenza nominale di 8 Ohm
General |
|
| Product type | Cone driver |
| Brand | Sica |
| Reference | 6.5H1.5CP |
| Product code | Z004100C |
Informations |
|
| Nominal impedance | 8 ohm |
| Dimensional category | 7 inch |
| Frequency coverage type | Sub, Low, Midbass |
| Manufacturer sensitivity | 89.4 dB |
| Calculated sensitivity | 87.98 dB |
| Nominal power handling | 120 W |
| Max power handling | 240 W |
| Bandwidth | 40÷4500 Hz |
Fundamental parameters |
|
| Sd | 122.7 cm² |
| Mms | 13 gr |
| Cms | 945 µm/N |
| Le | 0.48 mH |
| Re | 6.1 ohm |
| BL | 7.02 T.m |
Small signal parameters |
|
| Fs | 45.4 Hz |
| Qes | 0.46 |
| Qms | 5.21 |
| Qts | 0.42 |
| Vas | 20.2 L |
Datas |
|
| Flux density | 0.9 T |
| Xmax | ±6 mm |
| Calculated Xmax | ±6.5 mm |
| Xvar, Xmech, Xlim | ±8.5 mm |
| EBP | 99 Hz |
| Fs / Qts | 108 Hz |
| Vas * Qts² | 3.57 L |
| Efficiency | 0.4 % |
| Calculated efficiency | 0.4 % |
| Weight | ~1.6 kg |
Dimensions |
|
| Voice coil diameter | 1.5 inch |
| Winding depth | 15 mm |
| Gap height | 6 mm |
| Outside diameter | 175 mm |
| Baffle cutout diameter | 142 mm |
| Depth | 77.5 mm |
| Front thickness | 7 mm |
| Depth after front | 70.5 mm |
| Diamètre aimant (mm) | 102 mm |
Shape & Materials |
|
| Front chape | Cylindrical |
| Magnet type | Ferrite |
| Basket masterial | Aluminium |
| Winding material | Copper |
| Voice coil former | Kapton |
| Surround shape | Double roll |
| Surround material | Rubber |
| Dome material | Paper |
Z004100
Scheda tecnica
- Diametro esterno [mm]
- 175 mm.
- Impedenza [Ohm]
- 8 Ohm
- Magnete
- Ferrite
- Marca
- Sica
- Potenza [Watt]
- 240 Watt
- Serie
- Woofer
