HW159 Ciare woofer 6,5'' 165mm 8Ohm 150W HW 159 HW-159 16 cm
38,00 €
Tasse incluse
HW159 Ciare woofer 6,5'' 165mm 8Ohm 150W HW 159 HW-159 16 cm

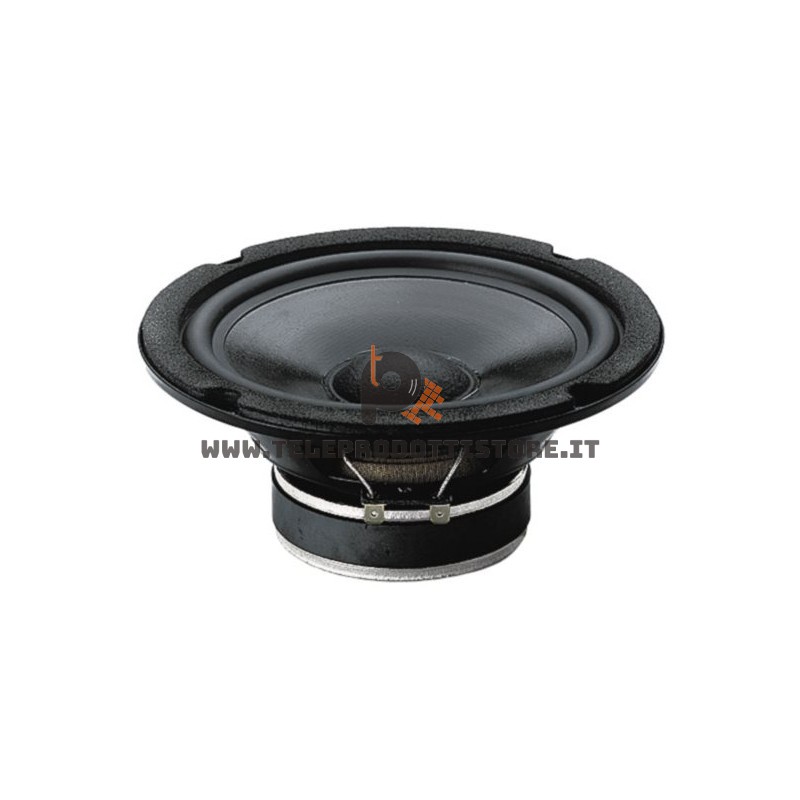

Woofer CIARE HW159
Membrana in cellulosa smorzata e sospensione in gomma
Specifiche
Nominal Diameter
165 mm (6.5 in)
Nominal Power Handling
60 W
Sensitivity
90 dB
Voice Coil Diameter
25 mm (1 in)
Winding Depth
14 mm (0.55 in)
Impedenza nominale
8 Ω
Continuous Power Handling
150 W
Frequency Range
55 Hz - 55 Hz
Former Material
Aluminum
Magnetic Gap Depth
5 mm (0.2 in)
Parametri
Fs
53 Hz
Qes
0.61
Qts
0.49
Sd
133 cm² (20.62 sq²)
Xmax
5.8 mm (0.23 in)
Bl
6.32 Tm
Cms
0.79 mm/N
EBP
87 Hz
Re
6.3 Ω
Qms
2.56
Vas
19.4 dm³ (0.69 ft³)
η0
0.45 %
Mms
11.43 g
Le
0.51 mH
d
130 mm (5.12 in)
Design
Surround Shape
Rubber
Recommended Loading
Sealed box
Recommended Enclosure
17 dm³ (0.6 ft³)
Informazioni di montaggio e spedizione
Diametro totale
169 mm (6.65 in)
Baffle Cutout Diameter
142 mm (5.59 in)
Flange and Gasket Thickness
8 mm (0.31 in)
Shipping Units
6 pcs
Bolt Quantity
4 pcs
Bolt Circle Diameter
158 mm (6.22 in)
Depth
74 mm (2.91 in)
Net Weight
1.11 kg (2.44 lb)
Basket Material
Steel
Bolt Diameter
5 mm (0.2 in)
Other
| NPieces per masterpacking | 6 |
Models
| Model | Code | Info |
|---|---|---|
| HW159 | HW159 |
HW159
Scheda tecnica
- Diametro esterno [mm]
- 165 mm. 6"
- Impedenza [Ohm]
- 8 Ohm
- Magnete
- Ferrite
- Marca
- Ciare
- Modello
- HW159
- Potenza [Watt]
- 150 Watt
- Serie
- Ciare HOME
