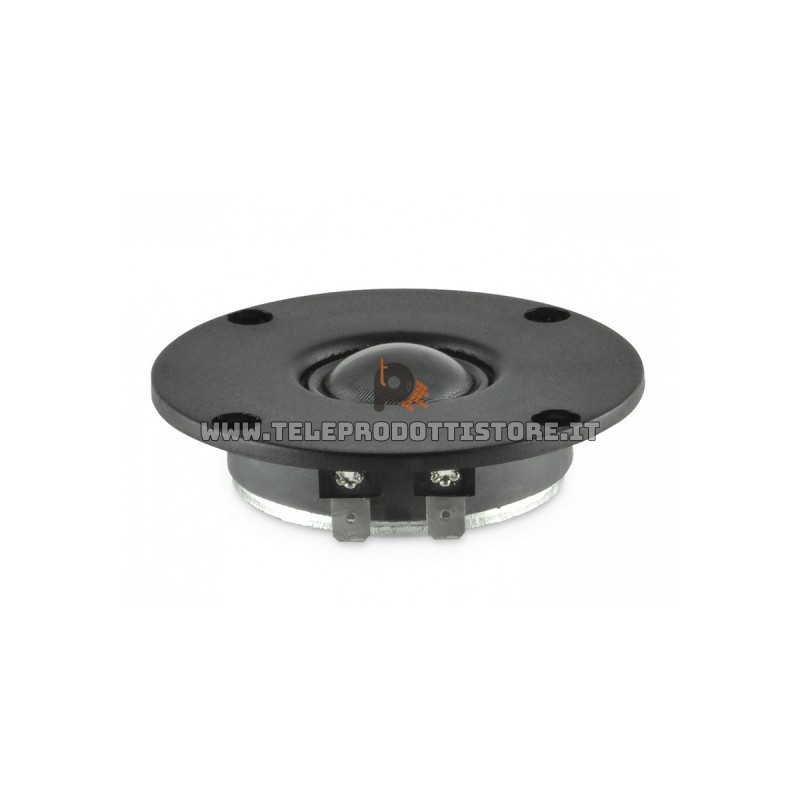

Sica LP 85.25/95 TW Z009040

Il Sica LP 85.25/95 TW è un tweeter per utilizzo HIFI con flangia in ABS da 85 mm.

Cupola in seta, magnete in ferrite bobina da 25 mm. con supporto in alluminio

Caratteristiche tecniche Sica Z009040 LP 85.25/95

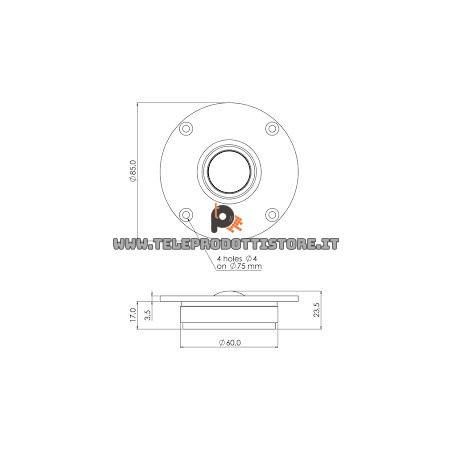

Nominal Diameter 85mm
Nominal Impedance 8Ω
Rated Power AES (1) (3000 - 20000 Hz) 20W
Continuous Program Power (2) 40W
Rated Noise Power (IEC 60268-5) (3) 80W
Sensitivity @ 1W/1m (4) 89.8dB
Voice Coil Diameter 25mm (1")
Voice Coil Winding Depth 1.8mm
Magnetic Gap Depth 3mm
Flux Density 1.06T
DC Resistance 6.30Ω
Resonance Frequency 1.1kHz
Magnet Weight 95g
Net Weight 0.26kg
Recommended Crossover Frequency 2.5kHz

Caratteristiche costruttive Sica Z009040 LP 85.25/95

Magnet : Ferrite
Voice Coil Winding Material : Copper
Voice Coil Former Material : Aluminium
Diaphragm : Treated Silk
Ferrofluid in Air Gap : Yes
Flange : ABS
