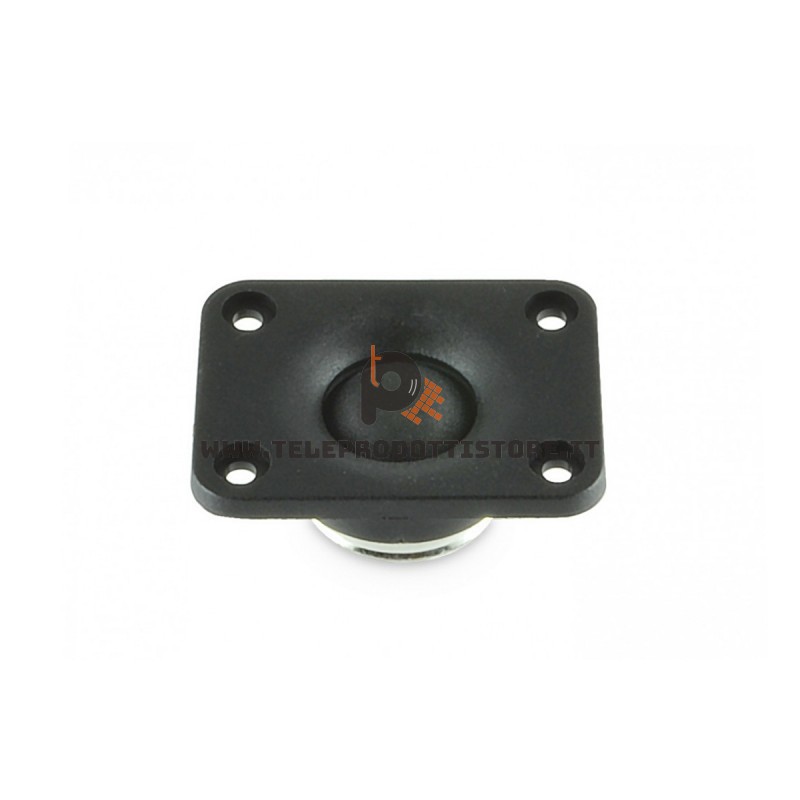

LP 38X50.18 / N5 TW SICA Z008701

Il Sica LP 38×50.18/N5 TW è un mini tweeter per utilizzo HIFI con flangia in fibre di Nylon da 38x50 mm.

Cupola in seta, magnete in neodimio e ferrofluido smorzante per la bobina da 18 mm. con supporto in Epotex

Caratteristiche tecniche Sica Z008701

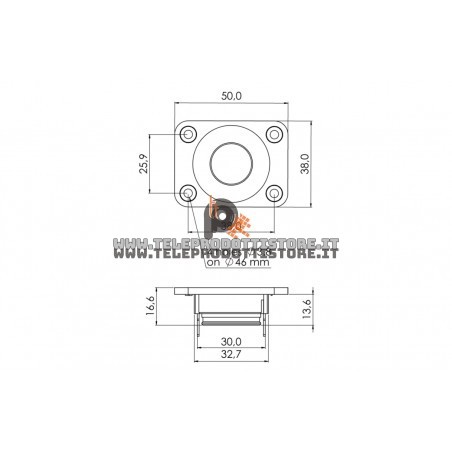

Nominal Dimensions 38x50 mm
Nominal Impedance 8 Ω
Rated Power AES(1) 12 W
Continuous Program Power(2) 24 W
Rated Noise Power (IEC 60268-5) (3) 50 W
Sensitivity @ 1W/1m (4) 91.1 dB
Voice Coil Diameter 18 mm (0,7")
Voice Coil Winding Depth 1.7 mm
Magnetic Gap Depth 2.0 mm
Flux Density 1.10 T
DC Resistance 5.8 Ω
Resonance Frequency 2.2 kHz
Magnet Weight 5 g
Net Weight 0.03 kg
Recommended Crossover Frequency 4.5 kHz

Caratteristiche tecniche Sica LP 38X50.18 / N5 TW

Magnet Neodymium
Voice Coil Winding Material Copper
Voice Coil Former Material Epotex
Diaphragm Treated Silk
Ferrofluid in Air Gap Yes
Flange Nylon Fiberglass Doped
