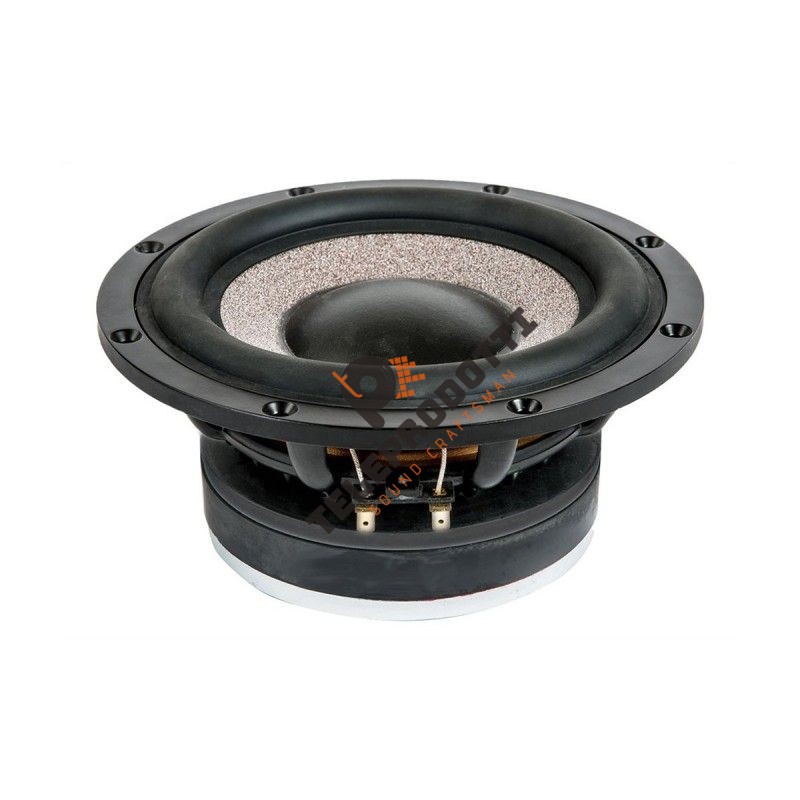

HSG200 Ciare sub woofer 8'' 224mm 4 ohm 700W subwoofer HSG200-4
158,00 €
Tasse incluse
HSG200 Ciare sub woofer 8'' 224mm 4 ohm 700W subwoofer HSG200-4
CIARE HSG200 SUB WOOFER 224 mm.
Subwoofer 8'' Ferrite 4 Ohm
Specifications
Nominal Diameter
200 mm (8 in)
Nominal Power Handling
350 W
Sensitivity
91 dB
Voice Coil Diameter
75 mm (3 in)
Winding Depth
20 mm (0.79 in)
Nominal Impedance
4 Ω
Continuous Power Handling
700 W
Frequency Range
35 Hz - 2500 Hz
Former Material
Glass fiber
Magnetic Gap Depth
10 mm (0.39 in)
Parameters
Fs
38 Hz
Qes
0.33
Qts
0.31
Sd
219 cm² (33.95 in²)
Xmax
7.5 mm (0.3 in)
Bl
11.8 Tm
d
167 mm (6.57 in)
Re
3.1 Ω
Qms
4.8
Vas
19 dm³ (0.67 ft³)
η0
0.33 %
Mms
62 g
Le
1.4 mH
EBP
115 Hz
Design
Surround Shape
Rubber
Recommended Enclosure
15 dm³ (0.53 ft³)
Suspension
Nomex Fabric
Cone Shape
Straight
Recommended Loading
Vented Box
Cone Material
Doped cellulose fiber
Mounting and Shipping Info
Overall Diameter
224 mm (8.82 in)
Baffle Cutout Diameter
184 mm (7.24 in)
Flange and Gasket Thickness
7.5 mm (0.3 in)
Shipping Units
1 pcs
Bolt Quantity
8 pcs
Bolt Circle Diameter
210 mm (8.27 in)
Depth
101.5 mm (4 in)
Net Weight
5 kg (11.01 lb)
Basket Material
Aluminum
Bolt Diameter
5.5 mm (0.22 in)
HSG200-4
Scheda tecnica
- Diametro esterno [mm]
- 224 mm.
- Impedenza [Ohm]
- 4 Ohm
- Magnete
- Ferrite
- Marca
- Ciare
- Modello
- HSG200-44
- Potenza [Watt]
- 700 Watt
- Serie
- Subwoofer
