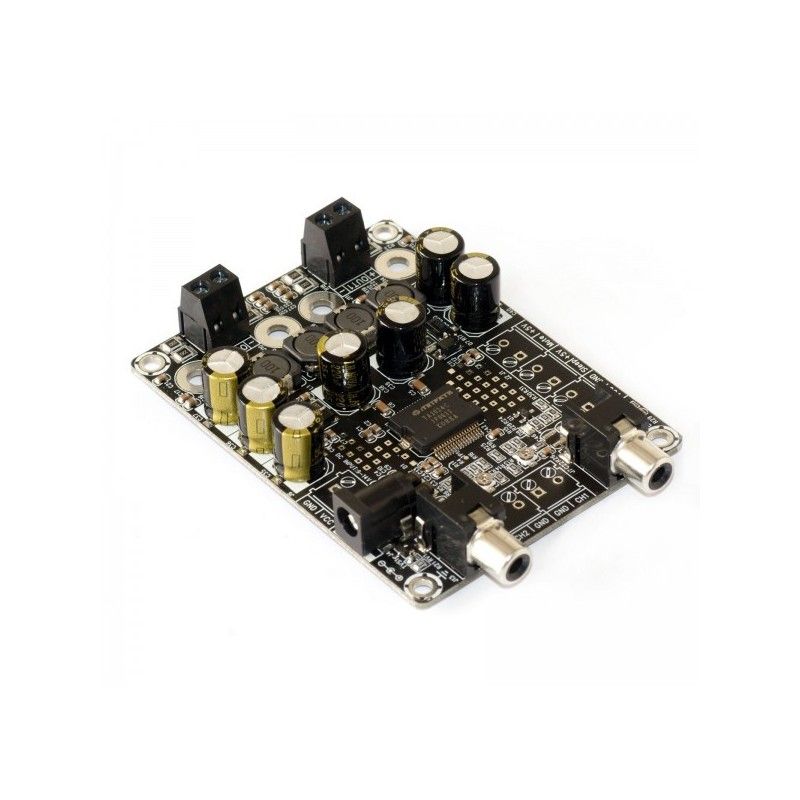

Sure Electronics AA_AB32155 Amplificatore 2 x 15 Watt Classe D TA2024 Visualizza ingrandito

Sure Electronics AA_AB32155 Amplificatore 2 x 15 Watt Classe D TA2024

AA-AB32155

Nuovo prodotto

Sure Electronics AA_AB32155 Amplificatore 2 x 15 Watt Classe D TA2024

26,00 € tasse incl.

Prodotto ordinabile, tempo di attesa: da 4 a 10 giorni lavorativi

  • 2 x 15 Watt 4 Ohm Class D Audio Amplifier Board - TA2024

    Overview?

    TA2024, an enduring integrated audio amplifier chip of low power in Tripath corporation, provides
    High-Fidelity sound, extremely high efficiency and durable construction. With compact layout and
    perfect quiescent dissipation control, along with mute and sleep functions, this chip can be widely
    used in DIY, desktop, kiosks and other projects.This assembled and tested Class-T amplifier board features proprietary digital power processing technology, perfect for creating active speakers for home or multimedia applications.

    Features:

    • OutputPower

    15W@4Ohm12VDCTHD+N10%
    10W@4Ohm12VDCTHD+N1%

    • PowerandClipIndicator
    • TemperatureControlFan(Optional)
    • FullProtection
    • 4-screwEasyInstallation
    • Weight:80g/0.18lbs(10%)
    • Size:3.60inchX2.70inchX0.65inch
    Applications:
    • Personalcomputers
    • Microphonepreamplifier
    • HomeDIY
    • Vendingmachines,Lifts,
    • Interactivekiosks
    • Hometheaterreceiver
    • Caraudio
    Electrical Specification:

    Specificationstypical@+25?,Poweredby 12VDC,unlessotherwisenoted.Specifications

    subjecttochangewithoutnotice.

    Parameter

    Conditions

    Min.

    Typ.

    Max.

    Units

    PowerSupply

    -

    -

    12

    -

    VDC

    IdlePower

    SDFloating

    -

    0.7

    1.5

    W

    StandbyPower

    SDConnectedtoGND

    -

    0.08

    0.5

    W

    MaximumCurrent

    30W@4Ohm

    -

    3.03

    -

    A

    Efficiency

    15W@4Ohm

    80

    -

    85

    %

    MinimumLoadImpedance

    -

    -

    4

    -

    ?

    SwitchingFrequency

    SDFloating

    -

    850

    -

    KHz

    AudioSpecification:
    Specificationstypical@+25?,Poweredby 12VDC,unlessotherwisenoted.Specifications
    subjecttochangewithoutnotice.

    Parameter

    Conditions

    Min.

    Typ.

    Max.

    Units

    Gain

    -

    20

    21

    22

    dB

    InputSensitivity(RMS)

    @4?,15W,1KHz

    -

    748

    -

    mV

    InputImpedance

    -

    -

    22

    -

    K?

    OutputPower

    @4?THD+N1%

    -

    10

    -

    W

    @4?THD+N10%

    -

    15

    -

    W

    Bandwidth@3dB

    @4?

    20

    -

    20K

    Hz

    THD

    @4?,1W,1KHz

    -

    0.024

    -

    %

    @4?,10W,1KHz

    -

    0.54

    -

    %

    OutputNoiseLevel

    A-weighting,InputConnectedtoGND

    -

    122.65

    -

    V

    SNR

    10W@4?THD+N1%

    -

    84.4

    -

    dB
